SHACL for Gazetteer of Administrative Units in Czechia

Version: 1.0
License: https://creativecommons.org/licenses/by/4.0/
Creator: TamTam Research s.r.o.
Publisher: TamTam Research s.r.o.
Imports : http://www.opengis.net/ont/geosparql, http://www.w3.org/2006/time#2016, https://ec.europa.eu/eurostat/ramon/ontologies/geographic.rdf

Abstract

SHACL file defines constraints (mostly which information shall be present) on a RDF data describing items in gazetteer of Czech adminstrative Units. RDF is using ontology LOD SRTI DATEX II ADU which allows to describe adminstrative units in Czechia and Spain. Items describe ALERT-C location code, name, NUTS and RUIAN code, and links to sws.geonames.org, vdp.cuzk.cz and data.europa.eu/nuts/code

Table of Contents

Namespaces

Prefix Namespace
adu http://cef.uv.es/lodroadtran18/def/transporte/dtx_srti/administrativeUnit#
adu_cz https://lod.tamtamresearch.com/resource/dtx_srti/administrativeUnit/
dcterms http://purl.org/dc/terms/
owl http://www.w3.org/2002/07/owl#
rdf http://www.w3.org/1999/02/22-rdf-syntax-ns#
rdfs http://www.w3.org/2000/01/rdf-schema#
xsd http://www.w3.org/2001/XMLSchema#

Main Entities

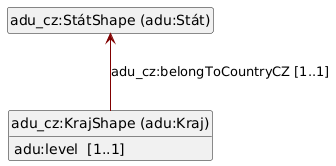

adu_cz:KrajShape

https://lod.tamtamresearch.com/resource/dtx_srti/administrativeUnit/KrajShape
An error has occured : java.io.IOException: net.sf.saxon.trans.XPathException: Character in comment cannot be represented in the selected encoding (code 225)Make us all safe. Go back to your bunker Diagram size: 17 lines / 560 characters. PlantUML (1.2024.4) cannot parse result from dot/GraphViz. This version of PlantUML is 772 days old, so you shouldconsider upgrading from https://plantuml.com/download Please go to https://plantuml.com/graphviz-dot to check your GraphViz version. Java Runtime: OpenJDK Runtime EnvironmentJVM: OpenJDK 64-Bit Server VMDefault Encoding: UTF-8Language: enCountry: null PLANTUML_LIMIT_SIZE: 4096 This may be caused by :- a bug in PlantUML- a problem in GraphViz You should send this diagram and this image toplantuml@gmail.comorpost tohttps://plantuml.com/qato solve this issue.You can try to turn around this issue by simplifing your diagram. java.io.IOException: net.sf.saxon.trans.XPathException: Character in comment cannot be represented in the selected encoding (code 225)net.sourceforge.plantuml.klimt.drawing.svg.UGraphicSvg.writeToStream(UGraphicSvg.java:147)net.atmp.ImageBuilder.writeImageInternal(ImageBuilder.java:258)net.atmp.ImageBuilder.write(ImageBuilder.java:231)net.sourceforge.plantuml.svek.CucaDiagramFileMakerSvek.createFileInternal(CucaDiagramFileMakerSvek.java:130)net.sourceforge.plantuml.svek.CucaDiagramFileMakerSvek.createFile(CucaDiagramFileMakerSvek.java:70)net.atmp.CucaDiagram.exportDiagramInternal(CucaDiagram.java:437)net.sourceforge.plantuml.classdiagram.ClassDiagram.exportDiagramInternal(ClassDiagram.java:84)net.sourceforge.plantuml.UmlDiagram.exportDiagramNow(UmlDiagram.java:138)net.sourceforge.plantuml.AbstractPSystem.exportDiagram(AbstractPSystem.java:207)net.sourceforge.plantuml.SourceStringReader.outputImage(SourceStringReader.java:189)net.sourceforge.plantuml.SourceStringReader.outputImage(SourceStringReader.java:147)net.sourceforge.plantuml.SourceStringReader.generateImage(SourceStringReader.java:143)fr.sparna.rdf.shacl.diagram.plantuml.PlantUmlSvgSerializer.serializeInSVG(PlantUmlSvgSerializer.java:29)fr.sparna.rdf.shacl.diagram.plantuml.PlantUmlSvgSerializer.serializeInSVG(PlantUmlSvgSerializer.java:21)fr.sparna.rdf.shacl.doc.model.ShapesDocumentationDiagram.<init>(ShapesDocumentationDiagram.java:25)fr.sparna.rdf.shacl.doc.read.ShapesDocumentationSectionBuilder.lambda$build$0(ShapesDocumentationSectionBuilder.java:71)java.base/java.util.ArrayList$ArrayListSpliterator.forEachRemaining(ArrayList.java:1708)java.base/java.util.stream.ReferencePipeline$Head.forEach(ReferencePipeline.java:762)fr.sparna.rdf.shacl.doc.read.ShapesDocumentationSectionBuilder.build(ShapesDocumentationSectionBuilder.java:71)fr.sparna.rdf.shacl.doc.read.ShapesDocumentationModelReader.readShapesDocumentation(ShapesDocumentationModelReader.java:133)fr.sparna.rdf.shacl.shaclplay.doc.DocController.doOutputDoc(DocController.java:262)fr.sparna.rdf.shacl.shaclplay.doc.DocController.docUrl(DocController.java:108)java.base/jdk.internal.reflect.DirectMethodHandleAccessor.invoke(DirectMethodHandleAccessor.java:103)java.base/java.lang.reflect.Method.invoke(Method.java:580)org.springframework.web.method.support.InvocableHandlerMethod.doInvoke(InvocableHandlerMethod.java:258)org.springframework.web.method.support.InvocableHandlerMethod.invokeForRequest(InvocableHandlerMethod.java:191)org.springframework.web.servlet.mvc.method.annotation.ServletInvocableHandlerMethod.invokeAndHandle(ServletInvocableHandlerMethod.java:118)org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter.invokeHandlerMethod(RequestMappingHandlerAdapter.java:991)org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter.handleInternal(RequestMappingHandlerAdapter.java:896)org.springframework.web.servlet.mvc.method.AbstractHandlerMethodAdapter.handle(AbstractHandlerMethodAdapter.java:87)org.springframework.web.servlet.DispatcherServlet.doDispatch(DispatcherServlet.java:1089)org.springframework.web.servlet.DispatcherServlet.doService(DispatcherServlet.java:979)org.springframework.web.servlet.FrameworkServlet.processRequest(FrameworkServlet.java:1014)org.springframework.web.servlet.FrameworkServlet.doGet(FrameworkServlet.java:903)jakarta.servlet.http.HttpServlet.service(HttpServlet.java:564)org.springframework.web.servlet.FrameworkServlet.service(FrameworkServlet.java:885)jakarta.servlet.http.HttpServlet.service(HttpServlet.java:658)org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:205)org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:149)org.apache.tomcat.websocket.server.WsFilter.doFilter(WsFilter.java:51)org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:174)org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:149)fr.sparna.rdf.shacl.shaclplay.SessionFilter.doFilter(SessionFilter.java:46)org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:174)org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:149)org.apache.catalina.filters.SetCharacterEncodingFilter.doFilter(SetCharacterEncodingFilter.java:115)org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:174)org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:149)org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:167)org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:90)org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:482)org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:115)org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:93)org.apache.catalina.valves.AbstractAccessLogValve.invoke(AbstractAccessLogValve.java:673)org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:74)org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:340)org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:391)org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:63)org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:896)org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1744)org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:52)org.apache.tomcat.util.threads.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1191)org.apache.tomcat.util.threads.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:659)org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)java.base/java.lang.Thread.run(Thread.java:1583) Diagram source: (Use http://zxing.org/w/decode.jspx to decode the qrcode)
Click diagram to navigate to corresponding section | View as PNG
Property name URI Expected value Card. Description
Properties from adu_cz:KrajShape
adu:level
1..1
adu_cz:belongToCountryCZ adu_cz:StátShape
1..1
Properties from adu_cz:CommonADUShape
adu:alertcCode xsd:string
0..1
adu:level xsd:decimal
0..1
adu:name xsd:string
0..1
adu:regionCode xsd:string
0..1
adu:ruianCode xsd:string
0..1
dcterms:title xsd:string
0..1
owl:sameAs IRI
0..*
rdf:type
1..1
rdfs:label xsd:string
1..1

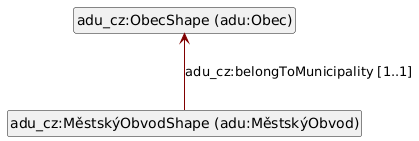

adu_cz:MěstskýObvodShape

https://lod.tamtamresearch.com/resource/dtx_srti/administrativeUnit/MěstskýObvodShape
An error has occured : java.io.IOException: net.sf.saxon.trans.XPathException: Character in comment cannot be represented in the selected encoding (code 283)Do you like movies about gladiators ? Diagram size: 16 lines / 551 characters. PlantUML (1.2024.4) cannot parse result from dot/GraphViz. This version of PlantUML is 772 days old, so you shouldconsider upgrading from https://plantuml.com/download Please go to https://plantuml.com/graphviz-dot to check your GraphViz version. Java Runtime: OpenJDK Runtime EnvironmentJVM: OpenJDK 64-Bit Server VMDefault Encoding: UTF-8Language: enCountry: null PLANTUML_LIMIT_SIZE: 4096 This may be caused by :- a bug in PlantUML- a problem in GraphViz You should send this diagram and this image toplantuml@gmail.comorpost tohttps://plantuml.com/qato solve this issue.You can try to turn around this issue by simplifing your diagram. java.io.IOException: net.sf.saxon.trans.XPathException: Character in comment cannot be represented in the selected encoding (code 283)net.sourceforge.plantuml.klimt.drawing.svg.UGraphicSvg.writeToStream(UGraphicSvg.java:147)net.atmp.ImageBuilder.writeImageInternal(ImageBuilder.java:258)net.atmp.ImageBuilder.write(ImageBuilder.java:231)net.sourceforge.plantuml.svek.CucaDiagramFileMakerSvek.createFileInternal(CucaDiagramFileMakerSvek.java:130)net.sourceforge.plantuml.svek.CucaDiagramFileMakerSvek.createFile(CucaDiagramFileMakerSvek.java:70)net.atmp.CucaDiagram.exportDiagramInternal(CucaDiagram.java:437)net.sourceforge.plantuml.classdiagram.ClassDiagram.exportDiagramInternal(ClassDiagram.java:84)net.sourceforge.plantuml.UmlDiagram.exportDiagramNow(UmlDiagram.java:138)net.sourceforge.plantuml.AbstractPSystem.exportDiagram(AbstractPSystem.java:207)net.sourceforge.plantuml.SourceStringReader.outputImage(SourceStringReader.java:189)net.sourceforge.plantuml.SourceStringReader.outputImage(SourceStringReader.java:147)net.sourceforge.plantuml.SourceStringReader.generateImage(SourceStringReader.java:143)fr.sparna.rdf.shacl.diagram.plantuml.PlantUmlSvgSerializer.serializeInSVG(PlantUmlSvgSerializer.java:29)fr.sparna.rdf.shacl.diagram.plantuml.PlantUmlSvgSerializer.serializeInSVG(PlantUmlSvgSerializer.java:21)fr.sparna.rdf.shacl.doc.model.ShapesDocumentationDiagram.<init>(ShapesDocumentationDiagram.java:25)fr.sparna.rdf.shacl.doc.read.ShapesDocumentationSectionBuilder.lambda$build$0(ShapesDocumentationSectionBuilder.java:71)java.base/java.util.ArrayList$ArrayListSpliterator.forEachRemaining(ArrayList.java:1708)java.base/java.util.stream.ReferencePipeline$Head.forEach(ReferencePipeline.java:762)fr.sparna.rdf.shacl.doc.read.ShapesDocumentationSectionBuilder.build(ShapesDocumentationSectionBuilder.java:71)fr.sparna.rdf.shacl.doc.read.ShapesDocumentationModelReader.readShapesDocumentation(ShapesDocumentationModelReader.java:133)fr.sparna.rdf.shacl.shaclplay.doc.DocController.doOutputDoc(DocController.java:262)fr.sparna.rdf.shacl.shaclplay.doc.DocController.docUrl(DocController.java:108)java.base/jdk.internal.reflect.DirectMethodHandleAccessor.invoke(DirectMethodHandleAccessor.java:103)java.base/java.lang.reflect.Method.invoke(Method.java:580)org.springframework.web.method.support.InvocableHandlerMethod.doInvoke(InvocableHandlerMethod.java:258)org.springframework.web.method.support.InvocableHandlerMethod.invokeForRequest(InvocableHandlerMethod.java:191)org.springframework.web.servlet.mvc.method.annotation.ServletInvocableHandlerMethod.invokeAndHandle(ServletInvocableHandlerMethod.java:118)org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter.invokeHandlerMethod(RequestMappingHandlerAdapter.java:991)org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter.handleInternal(RequestMappingHandlerAdapter.java:896)org.springframework.web.servlet.mvc.method.AbstractHandlerMethodAdapter.handle(AbstractHandlerMethodAdapter.java:87)org.springframework.web.servlet.DispatcherServlet.doDispatch(DispatcherServlet.java:1089)org.springframework.web.servlet.DispatcherServlet.doService(DispatcherServlet.java:979)org.springframework.web.servlet.FrameworkServlet.processRequest(FrameworkServlet.java:1014)org.springframework.web.servlet.FrameworkServlet.doGet(FrameworkServlet.java:903)jakarta.servlet.http.HttpServlet.service(HttpServlet.java:564)org.springframework.web.servlet.FrameworkServlet.service(FrameworkServlet.java:885)jakarta.servlet.http.HttpServlet.service(HttpServlet.java:658)org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:205)org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:149)org.apache.tomcat.websocket.server.WsFilter.doFilter(WsFilter.java:51)org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:174)org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:149)fr.sparna.rdf.shacl.shaclplay.SessionFilter.doFilter(SessionFilter.java:46)org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:174)org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:149)org.apache.catalina.filters.SetCharacterEncodingFilter.doFilter(SetCharacterEncodingFilter.java:115)org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:174)org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:149)org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:167)org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:90)org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:482)org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:115)org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:93)org.apache.catalina.valves.AbstractAccessLogValve.invoke(AbstractAccessLogValve.java:673)org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:74)org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:340)org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:391)org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:63)org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:896)org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1744)org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:52)org.apache.tomcat.util.threads.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1191)org.apache.tomcat.util.threads.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:659)org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)java.base/java.lang.Thread.run(Thread.java:1583) Diagram source: (Use http://zxing.org/w/decode.jspx to decode the qrcode)
Click diagram to navigate to corresponding section | View as PNG
Property name URI Expected value Card. Description
Properties from adu_cz:MěstskýObvodShape
adu_cz:belongToMunicipality adu_cz:ObecShape
1..1
Properties from adu_cz:CommonADUShape
adu:alertcCode xsd:string
0..1
adu:level xsd:decimal
0..1
adu:name xsd:string
0..1
adu:regionCode xsd:string
0..1
adu:ruianCode xsd:string
0..1
dcterms:title xsd:string
0..1
owl:sameAs IRI
0..*
rdf:type
1..1
rdfs:label xsd:string
1..1

adu_cz:ObecShape

https://lod.tamtamresearch.com/resource/dtx_srti/administrativeUnit/ObecShape
adu_cz:ObecShape (adu:Obec)adu:level [1..*]
Click diagram to navigate to corresponding section | View as PNG
Property name URI Expected value Card. Description
Properties from adu_cz:ObecShape
adu:level
1..*
Properties from adu_cz:CommonADUShape
adu:alertcCode xsd:string
0..1
adu:level xsd:decimal
0..1
adu:name xsd:string
0..1
adu:regionCode xsd:string
0..1
adu:ruianCode xsd:string
0..1
dcterms:title xsd:string
0..1
owl:sameAs IRI
0..*
rdf:type
1..1
rdfs:label xsd:string
1..1

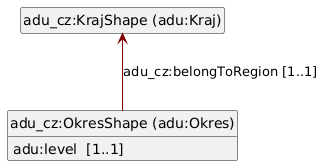

adu_cz:OkresShape

https://lod.tamtamresearch.com/resource/dtx_srti/administrativeUnit/OkresShape
adu_cz:OkresShape (adu:Okres)adu:level [1..1]adu_cz:KrajShape (adu:Kraj)adu_cz:belongToRegion [1..1]
Click diagram to navigate to corresponding section | View as PNG
Property name URI Expected value Card. Description
Properties from adu_cz:OkresShape
adu:level
1..1
adu_cz:belongToRegion adu_cz:KrajShape
1..1
Properties from adu_cz:CommonADUShape
adu:alertcCode xsd:string
0..1
adu:level xsd:decimal
0..1
adu:name xsd:string
0..1
adu:regionCode xsd:string
0..1
adu:ruianCode xsd:string
0..1
dcterms:title xsd:string
0..1
owl:sameAs IRI
0..*
rdf:type
1..1
rdfs:label xsd:string
1..1

adu_cz:StátShape

https://lod.tamtamresearch.com/resource/dtx_srti/administrativeUnit/StátShape
An error has occured : java.io.IOException: net.sf.saxon.trans.XPathException: Character in comment cannot be represented in the selected encoding (code 225)I know it's hard for you to understand even short sentences Diagram size: 14 lines / 376 characters. PlantUML (1.2024.4) cannot parse result from dot/GraphViz. This version of PlantUML is 772 days old, so you shouldconsider upgrading from https://plantuml.com/download Please go to https://plantuml.com/graphviz-dot to check your GraphViz version. Java Runtime: OpenJDK Runtime EnvironmentJVM: OpenJDK 64-Bit Server VMDefault Encoding: UTF-8Language: enCountry: null PLANTUML_LIMIT_SIZE: 4096 This may be caused by :- a bug in PlantUML- a problem in GraphViz You should send this diagram and this image toplantuml@gmail.comorpost tohttps://plantuml.com/qato solve this issue.You can try to turn around this issue by simplifing your diagram. java.io.IOException: net.sf.saxon.trans.XPathException: Character in comment cannot be represented in the selected encoding (code 225)net.sourceforge.plantuml.klimt.drawing.svg.UGraphicSvg.writeToStream(UGraphicSvg.java:147)net.atmp.ImageBuilder.writeImageInternal(ImageBuilder.java:258)net.atmp.ImageBuilder.write(ImageBuilder.java:231)net.sourceforge.plantuml.svek.CucaDiagramFileMakerSvek.createFileInternal(CucaDiagramFileMakerSvek.java:130)net.sourceforge.plantuml.svek.CucaDiagramFileMakerSvek.createFile(CucaDiagramFileMakerSvek.java:70)net.atmp.CucaDiagram.exportDiagramInternal(CucaDiagram.java:437)net.sourceforge.plantuml.classdiagram.ClassDiagram.exportDiagramInternal(ClassDiagram.java:84)net.sourceforge.plantuml.UmlDiagram.exportDiagramNow(UmlDiagram.java:138)net.sourceforge.plantuml.AbstractPSystem.exportDiagram(AbstractPSystem.java:207)net.sourceforge.plantuml.SourceStringReader.outputImage(SourceStringReader.java:189)net.sourceforge.plantuml.SourceStringReader.outputImage(SourceStringReader.java:147)net.sourceforge.plantuml.SourceStringReader.generateImage(SourceStringReader.java:143)fr.sparna.rdf.shacl.diagram.plantuml.PlantUmlSvgSerializer.serializeInSVG(PlantUmlSvgSerializer.java:29)fr.sparna.rdf.shacl.diagram.plantuml.PlantUmlSvgSerializer.serializeInSVG(PlantUmlSvgSerializer.java:21)fr.sparna.rdf.shacl.doc.model.ShapesDocumentationDiagram.<init>(ShapesDocumentationDiagram.java:25)fr.sparna.rdf.shacl.doc.read.ShapesDocumentationSectionBuilder.lambda$build$0(ShapesDocumentationSectionBuilder.java:71)java.base/java.util.ArrayList$ArrayListSpliterator.forEachRemaining(ArrayList.java:1708)java.base/java.util.stream.ReferencePipeline$Head.forEach(ReferencePipeline.java:762)fr.sparna.rdf.shacl.doc.read.ShapesDocumentationSectionBuilder.build(ShapesDocumentationSectionBuilder.java:71)fr.sparna.rdf.shacl.doc.read.ShapesDocumentationModelReader.readShapesDocumentation(ShapesDocumentationModelReader.java:133)fr.sparna.rdf.shacl.shaclplay.doc.DocController.doOutputDoc(DocController.java:262)fr.sparna.rdf.shacl.shaclplay.doc.DocController.docUrl(DocController.java:108)java.base/jdk.internal.reflect.DirectMethodHandleAccessor.invoke(DirectMethodHandleAccessor.java:103)java.base/java.lang.reflect.Method.invoke(Method.java:580)org.springframework.web.method.support.InvocableHandlerMethod.doInvoke(InvocableHandlerMethod.java:258)org.springframework.web.method.support.InvocableHandlerMethod.invokeForRequest(InvocableHandlerMethod.java:191)org.springframework.web.servlet.mvc.method.annotation.ServletInvocableHandlerMethod.invokeAndHandle(ServletInvocableHandlerMethod.java:118)org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter.invokeHandlerMethod(RequestMappingHandlerAdapter.java:991)org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter.handleInternal(RequestMappingHandlerAdapter.java:896)org.springframework.web.servlet.mvc.method.AbstractHandlerMethodAdapter.handle(AbstractHandlerMethodAdapter.java:87)org.springframework.web.servlet.DispatcherServlet.doDispatch(DispatcherServlet.java:1089)org.springframework.web.servlet.DispatcherServlet.doService(DispatcherServlet.java:979)org.springframework.web.servlet.FrameworkServlet.processRequest(FrameworkServlet.java:1014)org.springframework.web.servlet.FrameworkServlet.doGet(FrameworkServlet.java:903)jakarta.servlet.http.HttpServlet.service(HttpServlet.java:564)org.springframework.web.servlet.FrameworkServlet.service(FrameworkServlet.java:885)jakarta.servlet.http.HttpServlet.service(HttpServlet.java:658)org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:205)org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:149)org.apache.tomcat.websocket.server.WsFilter.doFilter(WsFilter.java:51)org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:174)org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:149)fr.sparna.rdf.shacl.shaclplay.SessionFilter.doFilter(SessionFilter.java:46)org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:174)org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:149)org.apache.catalina.filters.SetCharacterEncodingFilter.doFilter(SetCharacterEncodingFilter.java:115)org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:174)org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:149)org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:167)org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:90)org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:482)org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:115)org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:93)org.apache.catalina.valves.AbstractAccessLogValve.invoke(AbstractAccessLogValve.java:673)org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:74)org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:340)org.apache.coyote.http11.Http11Processor.service(Http11Processor.java:391)org.apache.coyote.AbstractProcessorLight.process(AbstractProcessorLight.java:63)org.apache.coyote.AbstractProtocol$ConnectionHandler.process(AbstractProtocol.java:896)org.apache.tomcat.util.net.NioEndpoint$SocketProcessor.doRun(NioEndpoint.java:1744)org.apache.tomcat.util.net.SocketProcessorBase.run(SocketProcessorBase.java:52)org.apache.tomcat.util.threads.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1191)org.apache.tomcat.util.threads.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:659)org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)java.base/java.lang.Thread.run(Thread.java:1583) Diagram source: (Use http://zxing.org/w/decode.jspx to decode the qrcode)
Click diagram to navigate to corresponding section | View as PNG
Property name URI Expected value Card. Description
Properties from adu_cz:StátShape
adu:level
1..1
Properties from adu_cz:CommonADUShape
adu:alertcCode xsd:string
0..1
adu:level xsd:decimal
0..1
adu:name xsd:string
0..1
adu:regionCode xsd:string
0..1
adu:ruianCode xsd:string
0..1
dcterms:title xsd:string
0..1
owl:sameAs IRI
0..*
rdf:type
1..1
rdfs:label xsd:string
1..1

Supportive Entities

adu_cz:CommonADUShape

https://lod.tamtamresearch.com/resource/dtx_srti/administrativeUnit/CommonADUShape
adu_cz:CommonADUShapeadu:alertcCode : xsd:string [0..1]adu:level : xsd:decimal [0..1]adu:name : xsd:string [0..1]adu:regionCode : xsd:string [0..1]adu:ruianCode : xsd:string [0..1]dcterms:title : xsd:string [0..1]owl:sameAs : IRIrdf:type [1..1]rdfs:label : xsd:string [1..1]
Click diagram to navigate to corresponding section | View as PNG
Property name URI Expected value Card. Description
adu:alertcCode xsd:string
0..1
adu:level xsd:decimal
0..1
adu:name xsd:string
0..1
adu:regionCode xsd:string
0..1
adu:ruianCode xsd:string
0..1
dcterms:title xsd:string
0..1
owl:sameAs IRI
0..*
rdf:type
1..1
rdfs:label xsd:string
1..1

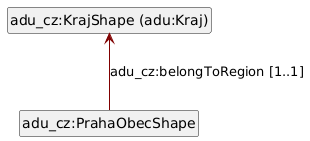

adu_cz:PrahaObecShape

https://lod.tamtamresearch.com/resource/dtx_srti/administrativeUnit/PrahaObecShape
adu_cz:PrahaObecShapeadu_cz:KrajShape (adu:Kraj)adu_cz:belongToRegion [1..1]
Click diagram to navigate to corresponding section | View as PNG
Property name URI Expected value Card. Description
adu_cz:belongToRegion adu_cz:KrajShape
1..1

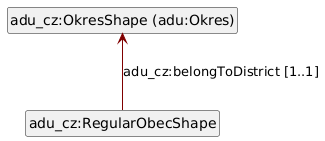

adu_cz:RegularObecShape

https://lod.tamtamresearch.com/resource/dtx_srti/administrativeUnit/RegularObecShape
adu_cz:RegularObecShapeadu_cz:OkresShape (adu:Okres)adu_cz:belongToDistrict [1..1]
Click diagram to navigate to corresponding section | View as PNG
Property name URI Expected value Card. Description
adu_cz:belongToDistrict adu_cz:OkresShape
1..1
