SHACL for Safety Related Traffic Information (SRTI) in Czechia

Version: 1.0
License: https://creativecommons.org/licenses/by/4.0/
Creator: TamTam Research s.r.o.
Publisher: TamTam Research s.r.o.
Imports : https://ec.europa.eu/eurostat/ramon/ontologies/geographic.rdf, http://www.w3.org/2006/time#2016, http://www.opengis.net/ont/geosparql

Abstract

SHACL file defines constraints (mostly which information shall be present) on a RDF data describing Safety Realted Traffic information (SRTI) as is published for region of Czechia. RDF is using ontology LOD SRTI DATEX II which maps DATEX II Situation Publication class model into RDF. Each SituationRecord version is present (so there can be multiple versions of an SituationRecord with the same id). Validity in time is described by overall start and end date time. Location is described by point location and where possible, it is also defined by means of ALERT-C location reference. Locations shall refer to gazetteer of Czech Administrative Units and where possible also to gazetteer of Czech roads.

Namespaces
Main Entities
Supportive Entities

Namespaces

Prefix	Namespace
dcterms	http://purl.org/dc/terms/
dtx_srti	http://cef.uv.es/lodroadtran18/def/transporte/dtx_srti#
geosparql	http://www.opengis.net/ont/geosparql#
rdf	http://www.w3.org/1999/02/22-rdf-syntax-ns#
rdfs	http://www.w3.org/2000/01/rdf-schema#
time	http://www.w3.org/2006/time#
virtrdf	http://www.openlinksw.com/schemas/virtrdf#
xsd	http://www.w3.org/2001/XMLSchema#

Main Entities

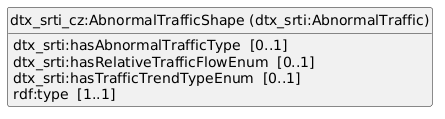

dtx_srti_cz:AbnormalTrafficShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/AbnormalTrafficShape

Applies to: dtx_srti:AbnormalTraffic
Closed shape
Conforms to: dtx_srti_cz:CommonSitRecShape

Click diagram to navigate to corresponding section | View as PNG

Property name	URI	Expected value	Card.
Properties from dtx_srti_cz:AbnormalTrafficShape
	`dtx_srti:hasAbnormalTrafficType`	dtx_srti:unspecifiedAbnormalTraffic, dtx_srti:stationaryTraffic, dtx_srti:slowTraffic, dtx_srti:queueingTraffic, dtx_srti:other, dtx_srti:heavyTraffic	0..1
	`dtx_srti:hasRelativeTrafficFlowEnum`	dtx_srti:trafficVeryMuchLighterThanNormal, dtx_srti:trafficVeryMuchHeavierThanNormal, dtx_srti:trafficLighterThanNormal, dtx_srti:trafficHeavierThanNormal, dtx_srti:trafficFlowNormal	0..1
	`dtx_srti:hasTrafficTrendTypeEnum`	dtx_srti:unknownTrafficTrend, dtx_srti:trafficStable, dtx_srti:trafficEasing, dtx_srti:trafficBuildingUp	0..1
	`rdf:type`		1..1

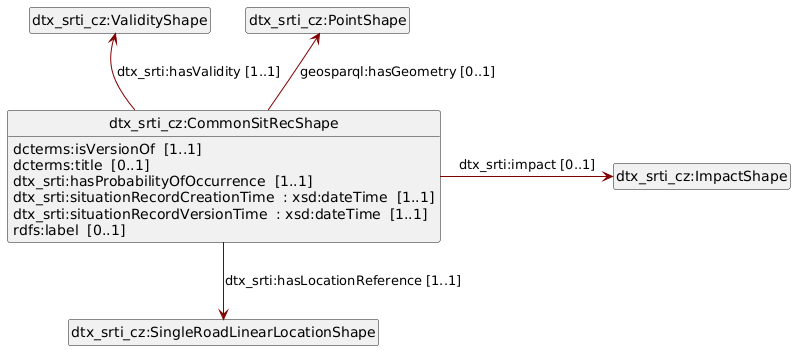

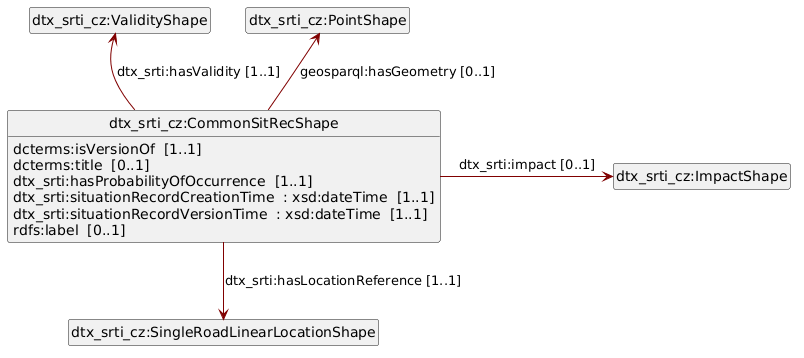

Properties from dtx_srti_cz:CommonSitRecShape
	`dcterms:isVersionOf`		1..1
	`dcterms:title`		0..1
	`dtx_srti:hasLocationReference`	`dtx_srti_cz:SingleRoadLinearLocationShape`	1..1
	`dtx_srti:hasProbabilityOfOccurrence`	dtx_srti:riskOf, dtx_srti:probable, dtx_srti:certain	1..1
	`dtx_srti:hasValidity`	`dtx_srti_cz:ValidityShape`	1..1

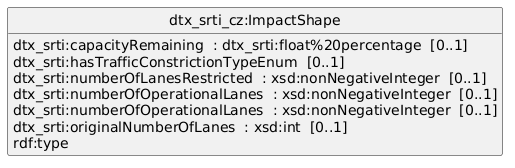

	`dtx_srti:impact`	`dtx_srti_cz:ImpactShape`	0..1
	`dtx_srti:situationRecordCreationTime`	`xsd:dateTime`	1..1
	`dtx_srti:situationRecordVersionTime`	`xsd:dateTime`	1..1
	`geosparql:hasGeometry`	`dtx_srti_cz:PointShape`	0..1
	`rdfs:label`		0..1

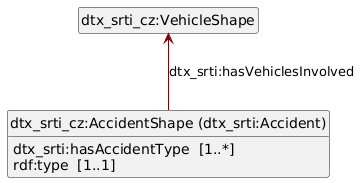

dtx_srti_cz:AccidentShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/AccidentShape

Applies to: dtx_srti:Accident
Closed shape
Conforms to: dtx_srti_cz:CommonSitRecShape

Click diagram to navigate to corresponding section | View as PNG

Property name	URI	Expected value	Card.
Properties from dtx_srti_cz:AccidentShape
	`dtx_srti:hasAccidentType`	dtx_srti:accident, dtx_srti:accidentInvolvingHazardousMaterials, dtx_srti:accidentInvolvingHeavyLorries, dtx_srti:collision, dtx_srti:multipleVehicleAccident	1..*

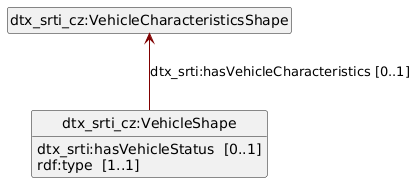

	`dtx_srti:hasVehiclesInvolved`	`dtx_srti_cz:VehicleShape`	0..*
	`rdf:type`		1..1
Properties from dtx_srti_cz:CommonSitRecShape
	`dcterms:isVersionOf`		1..1
	`dcterms:title`		0..1
	`dtx_srti:hasLocationReference`	`dtx_srti_cz:SingleRoadLinearLocationShape`	1..1
	`dtx_srti:hasProbabilityOfOccurrence`	dtx_srti:riskOf, dtx_srti:probable, dtx_srti:certain	1..1
	`dtx_srti:hasValidity`	`dtx_srti_cz:ValidityShape`	1..1
	`dtx_srti:impact`	`dtx_srti_cz:ImpactShape`	0..1
	`dtx_srti:situationRecordCreationTime`	`xsd:dateTime`	1..1
	`dtx_srti:situationRecordVersionTime`	`xsd:dateTime`	1..1
	`geosparql:hasGeometry`	`dtx_srti_cz:PointShape`	0..1
	`rdfs:label`		0..1

dtx_srti_cz:AnimalPresenceObstructionShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/AnimalPresenceObstructionShape

Applies to: dtx_srti:AnimalPresenceObstruction
Closed shape
Conforms to: dtx_srti_cz:CommonSitRecShape

Click diagram to navigate to corresponding section | View as PNG

Property name	URI	Expected value	Card.
Properties from dtx_srti_cz:AnimalPresenceObstructionShape
	`dtx_srti:hasAnimalPresenceTypeEnum`	dtx_srti:animalsOnTheRoad, dtx_srti:herdOfAnimalsOnTheRoad, dtx_srti:largeAnimalsOnTheRoad	1..1
	`rdf:type`		1..1

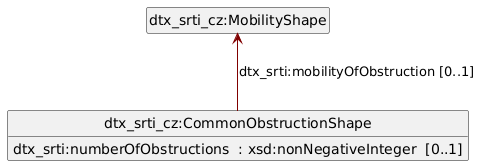

Properties from dtx_srti_cz:CommonObstructionShape
	`dtx_srti:mobilityOfObstruction`	`dtx_srti_cz:MobilityShape`	0..1
	`dtx_srti:numberOfObstructions`	`xsd:nonNegativeInteger`	0..1
Properties from dtx_srti_cz:CommonSitRecShape
	`dcterms:isVersionOf`		1..1
	`dcterms:title`		0..1
	`dtx_srti:hasLocationReference`	`dtx_srti_cz:SingleRoadLinearLocationShape`	1..1
	`dtx_srti:hasProbabilityOfOccurrence`	dtx_srti:riskOf, dtx_srti:probable, dtx_srti:certain	1..1
	`dtx_srti:hasValidity`	`dtx_srti_cz:ValidityShape`	1..1
	`dtx_srti:impact`	`dtx_srti_cz:ImpactShape`	0..1
	`dtx_srti:situationRecordCreationTime`	`xsd:dateTime`	1..1
	`dtx_srti:situationRecordVersionTime`	`xsd:dateTime`	1..1
	`geosparql:hasGeometry`	`dtx_srti_cz:PointShape`	0..1
	`rdfs:label`		0..1

dtx_srti_cz:ConstructionWorksShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/ConstructionWorksShape

Applies to: dtx_srti:ConstructionWorks
Closed shape
Conforms to: dtx_srti_cz:CommonSitRecShape

Click diagram to navigate to corresponding section | View as PNG

Property name	URI	Expected value	Card.
Properties from dtx_srti_cz:ConstructionWorksShape
	`dtx_srti:hasConstructionWorkType`	dtx_srti:blastingWork, dtx_srti:constructionWork	0..1
	`rdf:type`		1..1
Properties from dtx_srti_cz:CommonRoadworksShape
	`dtx_srti:hasRoadworksDuration`	dtx_srti:longTerm, dtx_srti:mediumTerm, dtx_srti:shortTerm	0..1
	`dtx_srti:hasRoadworksScaleEnum`	dtx_srti:major, dtx_srti:mediumRoadworksScale, dtx_srti:minor	0..1
	`dtx_srti:underTraffic`	`xsd:boolean`	0..1
	`dtx_srti:urgenRoadworks`	`xsd:boolean`	0..1
Properties from dtx_srti_cz:CommonSitRecShape
	`dcterms:isVersionOf`		1..1
	`dcterms:title`		0..1
	`dtx_srti:hasLocationReference`	`dtx_srti_cz:SingleRoadLinearLocationShape`	1..1
	`dtx_srti:hasProbabilityOfOccurrence`	dtx_srti:riskOf, dtx_srti:probable, dtx_srti:certain	1..1
	`dtx_srti:hasValidity`	`dtx_srti_cz:ValidityShape`	1..1
	`dtx_srti:impact`	`dtx_srti_cz:ImpactShape`	0..1
	`dtx_srti:situationRecordCreationTime`	`xsd:dateTime`	1..1
	`dtx_srti:situationRecordVersionTime`	`xsd:dateTime`	1..1
	`geosparql:hasGeometry`	`dtx_srti_cz:PointShape`	0..1
	`rdfs:label`		0..1

dtx_srti_cz:DisturbanceActivityShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/DisturbanceActivityShape

Applies to: dtx_srti:DisturbanceActivity
Closed shape
Conforms to: dtx_srti_cz:CommonSitRecShape

Click diagram to navigate to corresponding section | View as PNG

Property name	URI	Expected value	Card.
Properties from dtx_srti_cz:DisturbanceActivityShape
	`dtx_srti:hasDisturbanceActivityTypeEnum`	dtx_srti:other, dtx_srti:evacuation, dtx_srti:demostration, dtx_srti:crowd	1..1
	`rdf:type`		1..1
Properties from dtx_srti_cz:CommonSitRecShape
	`dcterms:isVersionOf`		1..1
	`dcterms:title`		0..1
	`dtx_srti:hasLocationReference`	`dtx_srti_cz:SingleRoadLinearLocationShape`	1..1
	`dtx_srti:hasProbabilityOfOccurrence`	dtx_srti:riskOf, dtx_srti:probable, dtx_srti:certain	1..1
	`dtx_srti:hasValidity`	`dtx_srti_cz:ValidityShape`	1..1
	`dtx_srti:impact`	`dtx_srti_cz:ImpactShape`	0..1
	`dtx_srti:situationRecordCreationTime`	`xsd:dateTime`	1..1
	`dtx_srti:situationRecordVersionTime`	`xsd:dateTime`	1..1
	`geosparql:hasGeometry`	`dtx_srti_cz:PointShape`	0..1
	`rdfs:label`		0..1

dtx_srti_cz:EnvironmentalObstructionShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/EnvironmentalObstructionShape

Applies to: dtx_srti:EnvironmentalObstruction
Closed shape
Conforms to: dtx_srti_cz:CommonSitRecShape

Click diagram to navigate to corresponding section | View as PNG

Property name	URI	Expected value	Card.
Properties from dtx_srti_cz:EnvironmentalObstructionShape
	`dtx_srti:hasEnvironmentalObstructionTypeEnum`	dtx_srti:fallenTrees, dtx_srti:flooding, dtx_srti:subsidence, dtx_srti:rockfalls, dtx_srti:landslips, dtx_srti:avalanches	1..1
	`rdf:type`		1..1
Properties from dtx_srti_cz:CommonObstructionShape
	`dtx_srti:mobilityOfObstruction`	`dtx_srti_cz:MobilityShape`	0..1
	`dtx_srti:numberOfObstructions`	`xsd:nonNegativeInteger`	0..1
Properties from dtx_srti_cz:CommonSitRecShape
	`dcterms:isVersionOf`		1..1
	`dcterms:title`		0..1
	`dtx_srti:hasLocationReference`	`dtx_srti_cz:SingleRoadLinearLocationShape`	1..1
	`dtx_srti:hasProbabilityOfOccurrence`	dtx_srti:riskOf, dtx_srti:probable, dtx_srti:certain	1..1
	`dtx_srti:hasValidity`	`dtx_srti_cz:ValidityShape`	1..1
	`dtx_srti:impact`	`dtx_srti_cz:ImpactShape`	0..1
	`dtx_srti:situationRecordCreationTime`	`xsd:dateTime`	1..1
	`dtx_srti:situationRecordVersionTime`	`xsd:dateTime`	1..1
	`geosparql:hasGeometry`	`dtx_srti_cz:PointShape`	0..1
	`rdfs:label`		0..1

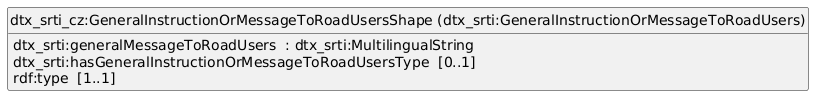

dtx_srti_cz:GeneralInstructionOrMessageToRoadUsersShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/GeneralInstructionOrMessageToRoadUsersShape

Applies to: dtx_srti:GeneralInstructionOrMessageToRoadUsers
Closed shape
Conforms to: dtx_srti_cz:CommonSitRecShape

Click diagram to navigate to corresponding section | View as PNG

Property name	URI	Expected value	Card.
Properties from dtx_srti_cz:GeneralInstructionOrMessageToRoadUsersShape
	`dtx_srti:generalMessageToRoadUsers`	`dtx_srti:MultilingualString`	0..*
	`dtx_srti:hasGeneralInstructionOrMessageToRoadUsersType`	dtx_srti:allowEmergencyVehiclesToPass, dtx_srti:approachWithCare, dtx_srti:avoidTheArea, dtx_srti:closeAllWIndowsTurnOffHeaterAndVents, dtx_srti:crossJunctionWithCare, dtx_srti:doNotAllowUnnecessaryGap, dtx_srti:doNotLeaveYourVehicle, dtx_srti:doNotThrowOutAnyBurningObjects, dtx_srti:doNotUseNavigationSystems, dtx_srti:driveCarefully, dtx_srti:driveWithExtremeCaution, dtx_srti:flashYourLights, dtx_srti:followTheVehicleInFrontSmoothly, dtx_srti:increaseNormalFollowingDistance, dtx_srti:inEmergencyWaitForPatrolService, dtx_srti:keepYourDistance, dtx_srti:leaveYourVehicleProceedToNextSafePlace, dtx_srti:noNakedFlames, dtx_srti:noOvertaking, dtx_srti:noSmoking, dtx_srti:noStopping, dtx_srti:noUturns, dtx_srti:observeAmberAlert, dtx_srti:observeSignals, dtx_srti:observeSigns, dtx_srti:oNLYTravelIfAbsolutelyNecessary, dtx_srti:overtakeWithCare, dtx_srti:pullOverToTHeEdgeOfTheRoadway, dtx_srti:stopAtNextSafePlace, dtx_srti:stopAtNextServiceArea, dtx_srti:switchOffEngine, dtx_srti:switchOffMobilePhonesAndTwoWayRadios, dtx_srti:testYourBrakes, dtx_srti:useBusService, dtx_srti:useFogLights, dtx_srti:useHazardWarningLights, dtx_srti:useHeadlights, dtx_srti:useRailService, dtx_srti:useTramService, dtx_srti:useUndergroundService, dtx_srti:waitForEscortService, dtx_srti:other	0..1
	`rdf:type`		1..1
Properties from dtx_srti_cz:CommonSitRecShape
	`dcterms:isVersionOf`		1..1
	`dcterms:title`		0..1
	`dtx_srti:hasLocationReference`	`dtx_srti_cz:SingleRoadLinearLocationShape`	1..1
	`dtx_srti:hasProbabilityOfOccurrence`	dtx_srti:riskOf, dtx_srti:probable, dtx_srti:certain	1..1
	`dtx_srti:hasValidity`	`dtx_srti_cz:ValidityShape`	1..1
	`dtx_srti:impact`	`dtx_srti_cz:ImpactShape`	0..1
	`dtx_srti:situationRecordCreationTime`	`xsd:dateTime`	1..1
	`dtx_srti:situationRecordVersionTime`	`xsd:dateTime`	1..1
	`geosparql:hasGeometry`	`dtx_srti_cz:PointShape`	0..1
	`rdfs:label`		0..1

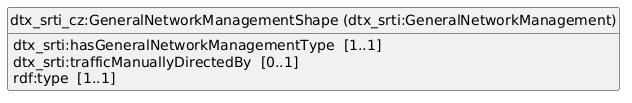

dtx_srti_cz:GeneralNetworkManagementShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/GeneralNetworkManagementShape

Applies to: dtx_srti:GeneralNetworkManagement
Closed shape
Conforms to: dtx_srti_cz:CommonSitRecShape

Click diagram to navigate to corresponding section | View as PNG

Property name	URI	Expected value	Card.
Properties from dtx_srti_cz:GeneralNetworkManagementShape
	`dtx_srti:hasGeneralNetworkManagementType`	dtx_srti:trafficHeld, dtx_srti:trafficBeingManuallyDirected, dtx_srti:tollGatesOpen, dtx_srti:temporaryTrafficLights, dtx_srti:rampMeteringInOperation, dtx_srti:other, dtx_srti:obstacleSignalling, dtx_srti:convoyService, dtx_srti:bridgeSwingInOperation	1..1
	`dtx_srti:trafficManuallyDirectedBy`	dtx_srti:veryimportantperson, dtx_srti:trafficwarden, dtx_srti:trafficofficer, dtx_srti:sickperson, dtx_srti:publictransportpassenger, dtx_srti:politician, dtx_srti:policeman, dtx_srti:memberofthepublic, dtx_srti:medicalstaff, dtx_srti:infant, dtx_srti:fireman, dtx_srti:emergencyservicesperson, dtx_srti:child, dtx_srti:adult	0..1
	`rdf:type`		1..1
Properties from dtx_srti_cz:CommonSitRecShape
	`dcterms:isVersionOf`		1..1
	`dcterms:title`		0..1
	`dtx_srti:hasLocationReference`	`dtx_srti_cz:SingleRoadLinearLocationShape`	1..1
	`dtx_srti:hasProbabilityOfOccurrence`	dtx_srti:riskOf, dtx_srti:probable, dtx_srti:certain	1..1
	`dtx_srti:hasValidity`	`dtx_srti_cz:ValidityShape`	1..1
	`dtx_srti:impact`	`dtx_srti_cz:ImpactShape`	0..1
	`dtx_srti:situationRecordCreationTime`	`xsd:dateTime`	1..1
	`dtx_srti:situationRecordVersionTime`	`xsd:dateTime`	1..1
	`geosparql:hasGeometry`	`dtx_srti_cz:PointShape`	0..1
	`rdfs:label`		0..1

dtx_srti_cz:GeneralObstructionShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/GeneralObstructionShape

Applies to: dtx_srti:GeneralObstruction
Closed shape
Conforms to: dtx_srti_cz:CommonSitRecShape

Click diagram to navigate to corresponding section | View as PNG

Property name	URI	Expected value	Card.
Properties from dtx_srti_cz:GeneralObstructionShape
	`dtx_srti:hasObstructionTypeEnum`	dtx_srti:objectOnTheRoad, dtx_srti:cyclistOnRoadway, dtx_srti:airCrash, dtx_srti:rescueAndRecoveryWork, dtx_srti:other, dtx_srti:shedLoad, dtx_srti:peopleOnRoadway, dtx_srti:unprotectedAccidentArea, dtx_srti:incident, dtx_srti:railCrash, dtx_srti:clearanceWork, dtx_srti:spillageOnTheRoad, dtx_srti:childrenOnRoadway	1..*
	`rdf:type`		0..*
Properties from dtx_srti_cz:CommonObstructionShape
	`dtx_srti:mobilityOfObstruction`	`dtx_srti_cz:MobilityShape`	0..1
	`dtx_srti:numberOfObstructions`	`xsd:nonNegativeInteger`	0..1
Properties from dtx_srti_cz:CommonSitRecShape
	`dcterms:isVersionOf`		1..1
	`dcterms:title`		0..1
	`dtx_srti:hasLocationReference`	`dtx_srti_cz:SingleRoadLinearLocationShape`	1..1
	`dtx_srti:hasProbabilityOfOccurrence`	dtx_srti:riskOf, dtx_srti:probable, dtx_srti:certain	1..1
	`dtx_srti:hasValidity`	`dtx_srti_cz:ValidityShape`	1..1
	`dtx_srti:impact`	`dtx_srti_cz:ImpactShape`	0..1
	`dtx_srti:situationRecordCreationTime`	`xsd:dateTime`	1..1
	`dtx_srti:situationRecordVersionTime`	`xsd:dateTime`	1..1
	`geosparql:hasGeometry`	`dtx_srti_cz:PointShape`	0..1
	`rdfs:label`		0..1

dtx_srti_cz:MaintenanceWorksShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/MaintenanceWorksShape

Applies to: dtx_srti:MaintenanceWorks
Closed shape
Conforms to: dtx_srti_cz:CommonSitRecShape

Click diagram to navigate to corresponding section | View as PNG

Property name	URI	Expected value	Card.
Properties from dtx_srti_cz:MaintenanceWorksShape
	`dtx_srti:hasRoadMaintenanceType`	dtx_srti:snowPloughsInUse, dtx_srti:maintenanceWork, dtx_srti:other, dtx_srti:repairWork, dtx_srti:resurfacingWork, dtx_srti:roadMarkingWork	1..*
	`rdf:type`		1..1
Properties from dtx_srti_cz:CommonRoadworksShape
	`dtx_srti:hasRoadworksDuration`	dtx_srti:longTerm, dtx_srti:mediumTerm, dtx_srti:shortTerm	0..1
	`dtx_srti:hasRoadworksScaleEnum`	dtx_srti:major, dtx_srti:mediumRoadworksScale, dtx_srti:minor	0..1
	`dtx_srti:underTraffic`	`xsd:boolean`	0..1
	`dtx_srti:urgenRoadworks`	`xsd:boolean`	0..1
Properties from dtx_srti_cz:CommonSitRecShape
	`dcterms:isVersionOf`		1..1
	`dcterms:title`		0..1
	`dtx_srti:hasLocationReference`	`dtx_srti_cz:SingleRoadLinearLocationShape`	1..1
	`dtx_srti:hasProbabilityOfOccurrence`	dtx_srti:riskOf, dtx_srti:probable, dtx_srti:certain	1..1
	`dtx_srti:hasValidity`	`dtx_srti_cz:ValidityShape`	1..1
	`dtx_srti:impact`	`dtx_srti_cz:ImpactShape`	0..1
	`dtx_srti:situationRecordCreationTime`	`xsd:dateTime`	1..1
	`dtx_srti:situationRecordVersionTime`	`xsd:dateTime`	1..1
	`geosparql:hasGeometry`	`dtx_srti_cz:PointShape`	0..1
	`rdfs:label`		0..1

dtx_srti_cz:NonWeatherRelatedRoadConditionsShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/NonWeatherRelatedRoadConditionsShape

Applies to: dtx_srti:NonWeatherRelatedRoadConditions
Closed shape
Conforms to: dtx_srti_cz:CommonSitRecShape

Click diagram to navigate to corresponding section | View as PNG

Property name	URI	Expected value	Card.
Properties from dtx_srti_cz:NonWeatherRelatedRoadConditionsShape
	`dtx_srti:hasNonWeatherRelatedRoadConditionTypeEnum`	dtx_srti:looseChippings, dtx_srti:otherNonWeatherRelatedRoadCondition, dtx_srti:roadSurfaceInPoorCondition, dtx_srti:leavesOnRoad, dtx_srti:looseSandOnRoad, dtx_srti:mudOnRoad, dtx_srti:petrolOnRoadway, dtx_srti:slipperyRoad, dtx_srti:oilOnRoad	1..*
	`rdf:type`		1..1
Properties from dtx_srti_cz:CommonConditionsShape
	`dtx_srti:hasDrivingConditionTypeEnum`	dtx_srti:winterConditions, dtx_srti:passableWithCare, dtx_srti:unknownDrivingCondition, dtx_srti:veryHazardous, dtx_srti:hazardous, dtx_srti:impossible, dtx_srti:normal, dtx_srti:other	0..1
Properties from dtx_srti_cz:CommonSitRecShape
	`dcterms:isVersionOf`		1..1
	`dcterms:title`		0..1
	`dtx_srti:hasLocationReference`	`dtx_srti_cz:SingleRoadLinearLocationShape`	1..1
	`dtx_srti:hasProbabilityOfOccurrence`	dtx_srti:riskOf, dtx_srti:probable, dtx_srti:certain	1..1
	`dtx_srti:hasValidity`	`dtx_srti_cz:ValidityShape`	1..1
	`dtx_srti:impact`	`dtx_srti_cz:ImpactShape`	0..1
	`dtx_srti:situationRecordCreationTime`	`xsd:dateTime`	1..1
	`dtx_srti:situationRecordVersionTime`	`xsd:dateTime`	1..1
	`geosparql:hasGeometry`	`dtx_srti_cz:PointShape`	0..1
	`rdfs:label`		0..1

dtx_srti_cz:PoorEnvironmentConditionsShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/PoorEnvironmentConditionsShape

Applies to: dtx_srti:PoorEnvironmentConditions
Closed shape
Conforms to: dtx_srti_cz:CommonSitRecShape

Click diagram to navigate to corresponding section | View as PNG

Property name	URI	Expected value	Card.
Properties from dtx_srti_cz:PoorEnvironmentConditionsShape
	`dtx_srti:hasPoorEnvironmentTypeEnum`	dtx_srti:visibilityReduced, dtx_srti:swarmOfInsects, dtx_srti:strongWinds, dtx_srti:strongGustsOfWind, dtx_srti:stormForceWinds, dtx_srti:snowFall, dtx_srti:smokeHazard, dtx_srti:sandStorms, dtx_srti:rain, dtx_srti:hail, dtx_srti:frost, dtx_srti:fog, dtx_srti:extremeHeat, dtx_srti:extremeCold, dtx_srti:crosswinds, dtx_srti:blowingSnow, dtx_srti:blowingDust, dtx_srti:badWeather	1..*
	`rdf:type`		1..1
Properties from dtx_srti_cz:CommonConditionsShape
	`dtx_srti:hasDrivingConditionTypeEnum`	dtx_srti:winterConditions, dtx_srti:passableWithCare, dtx_srti:unknownDrivingCondition, dtx_srti:veryHazardous, dtx_srti:hazardous, dtx_srti:impossible, dtx_srti:normal, dtx_srti:other	0..1
Properties from dtx_srti_cz:CommonSitRecShape
	`dcterms:isVersionOf`		1..1
	`dcterms:title`		0..1
	`dtx_srti:hasLocationReference`	`dtx_srti_cz:SingleRoadLinearLocationShape`	1..1
	`dtx_srti:hasProbabilityOfOccurrence`	dtx_srti:riskOf, dtx_srti:probable, dtx_srti:certain	1..1
	`dtx_srti:hasValidity`	`dtx_srti_cz:ValidityShape`	1..1
	`dtx_srti:impact`	`dtx_srti_cz:ImpactShape`	0..1
	`dtx_srti:situationRecordCreationTime`	`xsd:dateTime`	1..1
	`dtx_srti:situationRecordVersionTime`	`xsd:dateTime`	1..1
	`geosparql:hasGeometry`	`dtx_srti_cz:PointShape`	0..1
	`rdfs:label`		0..1

dtx_srti_cz:PublicEventShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/PublicEventShape

Applies to: dtx_srti:PublicEvent
Closed shape
Conforms to: dtx_srti_cz:CommonSitRecShape

Click diagram to navigate to corresponding section | View as PNG

Property name	URI	Expected value	Card.
Properties from dtx_srti_cz:PublicEventShape
	`dtx_srti:hasPublicEventType`	dtx_srti:other, dtx_srti:winterSportsMeeting, dtx_srti:watersportsMeeting, dtx_srti:tradeFair, dtx_srti:tournament, dtx_srti:tennisTournament, dtx_srti:stateOccasion, dtx_srti:sportsMeeting, dtx_srti:showJumping, dtx_srti:show, dtx_srti:severalMajorEvents, dtx_srti:rugbyMatch, dtx_srti:raceMeeting, dtx_srti:procession, dtx_srti:parade, dtx_srti:motorSportRaceMeeting, dtx_srti:motorShow, dtx_srti:match, dtx_srti:market, dtx_srti:marathon, dtx_srti:majorEvent, dtx_srti:internationalSportsMeeting, dtx_srti:horseRaceMeeting, dtx_srti:hockeyGame, dtx_srti:golfTournament, dtx_srti:gardeningOrFlowerShow, dtx_srti:funfair, dtx_srti:footballMatch, dtx_srti:filmTVMaking, dtx_srti:festival, dtx_srti:fair, dtx_srti:exhibition, dtx_srti:culturalEvent, dtx_srti:cricketMatch, dtx_srti:concert, dtx_srti:commercialEvent, dtx_srti:ceremonialEvent, dtx_srti:bullFight, dtx_srti:boxingTournament, dtx_srti:boatShow, dtx_srti:boatRace, dtx_srti:bicycleRace, dtx_srti:basketballGame, dtx_srti:baseballGame, dtx_srti:ballGame, dtx_srti:athleticsMeeting, dtx_srti:airShow, dtx_srti:agriculturalShow	1..1
	`rdf:type`		1..1
Properties from dtx_srti_cz:CommonSitRecShape
	`dcterms:isVersionOf`		1..1
	`dcterms:title`		0..1
	`dtx_srti:hasLocationReference`	`dtx_srti_cz:SingleRoadLinearLocationShape`	1..1
	`dtx_srti:hasProbabilityOfOccurrence`	dtx_srti:riskOf, dtx_srti:probable, dtx_srti:certain	1..1
	`dtx_srti:hasValidity`	`dtx_srti_cz:ValidityShape`	1..1
	`dtx_srti:impact`	`dtx_srti_cz:ImpactShape`	0..1
	`dtx_srti:situationRecordCreationTime`	`xsd:dateTime`	1..1
	`dtx_srti:situationRecordVersionTime`	`xsd:dateTime`	1..1
	`geosparql:hasGeometry`	`dtx_srti_cz:PointShape`	0..1
	`rdfs:label`		0..1

dtx_srti_cz:ReroutingManagementShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/ReroutingManagementShape

Applies to: dtx_srti:ReroutingManagement
Closed shape
Conforms to: dtx_srti_cz:CommonSitRecShape

Click diagram to navigate to corresponding section | View as PNG

Property name	URI	Expected value	Card.
Properties from dtx_srti_cz:ReroutingManagementShape
	`dtx_srti:hasReroutingManagementType`	dtx_srti:useIntersectionOrJunction, dtx_srti:useExit, dtx_srti:useEntry, dtx_srti:followSpecialMarkers, dtx_srti:followLocalDiversion, dtx_srti:followDiversionSigns, dtx_srti:doNotUseIntersectionOrJunction, dtx_srti:doNotUseExit, dtx_srti:doNotUseEntry, dtx_srti:doNotFollowDiversionSigns	1..*
	`rdf:type`		1..1
Properties from dtx_srti_cz:CommonSitRecShape
	`dcterms:isVersionOf`		1..1
	`dcterms:title`		0..1
	`dtx_srti:hasLocationReference`	`dtx_srti_cz:SingleRoadLinearLocationShape`	1..1
	`dtx_srti:hasProbabilityOfOccurrence`	dtx_srti:riskOf, dtx_srti:probable, dtx_srti:certain	1..1
	`dtx_srti:hasValidity`	`dtx_srti_cz:ValidityShape`	1..1
	`dtx_srti:impact`	`dtx_srti_cz:ImpactShape`	0..1
	`dtx_srti:situationRecordCreationTime`	`xsd:dateTime`	1..1
	`dtx_srti:situationRecordVersionTime`	`xsd:dateTime`	1..1
	`geosparql:hasGeometry`	`dtx_srti_cz:PointShape`	0..1
	`rdfs:label`		0..1

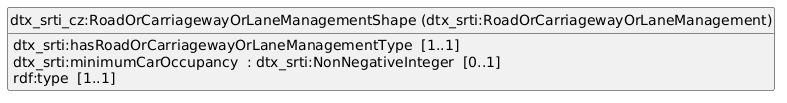

dtx_srti_cz:RoadOrCarriagewayOrLaneManagementShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/RoadOrCarriagewayOrLaneManagementShape

Applies to: dtx_srti:RoadOrCarriagewayOrLaneManagement
Closed shape
Conforms to: dtx_srti_cz:CommonSitRecShape

Click diagram to navigate to corresponding section | View as PNG

Property name	URI	Expected value	Card.
Properties from dtx_srti_cz:RoadOrCarriagewayOrLaneManagementShape
	`dtx_srti:hasRoadOrCarriagewayOrLaneManagementType`	dtx_srti:other, dtx_srti:weightRestrictionInOperation, dtx_srti:vehicleStorageInOperation, dtx_srti:useSpecifiedLanesOrCarriageways, dtx_srti:useOfSpecifiedLanesOrCarriagewaysAllowed, dtx_srti:turnAroundInOperation, dtx_srti:tidalFlowLaneInOperation, dtx_srti:singleAlternateLineTraffic, dtx_srti:rushHourLaneInOperation, dtx_srti:rollingRoadBlock, dtx_srti:roadClosed, dtx_srti:roadCleared, dtx_srti:overnightClosures, dtx_srti:newRoadworksLayout, dtx_srti:narrowLanes, dtx_srti:lanesDeviated, dtx_srti:laneClosures, dtx_srti:keepToTheRight, dtx_srti:keepToTheLeft, dtx_srti:intermittentShortTermClosures, dtx_srti:heightRestrictionInOperation, dtx_srti:hardShoulderRunningInOperation, dtx_srti:doNotUseSpecifiedLanesOrCarriageways, dtx_srti:contraflow, dtx_srti:closedPermanentlyForTheWinter, dtx_srti:clearALaneForSnowploughsAndGrittingVehicles, dtx_srti:clearALaneForEmergencyVehicles, dtx_srti:carriagewayClosures, dtx_srti:carPoolLaneInOperation	1..1
	`dtx_srti:minimumCarOccupancy`	`dtx_srti:NonNegativeInteger`	0..1
	`rdf:type`		1..1
Properties from dtx_srti_cz:CommonSitRecShape
	`dcterms:isVersionOf`		1..1
	`dcterms:title`		0..1
	`dtx_srti:hasLocationReference`	`dtx_srti_cz:SingleRoadLinearLocationShape`	1..1
	`dtx_srti:hasProbabilityOfOccurrence`	dtx_srti:riskOf, dtx_srti:probable, dtx_srti:certain	1..1
	`dtx_srti:hasValidity`	`dtx_srti_cz:ValidityShape`	1..1
	`dtx_srti:impact`	`dtx_srti_cz:ImpactShape`	0..1
	`dtx_srti:situationRecordCreationTime`	`xsd:dateTime`	1..1
	`dtx_srti:situationRecordVersionTime`	`xsd:dateTime`	1..1
	`geosparql:hasGeometry`	`dtx_srti_cz:PointShape`	0..1
	`rdfs:label`		0..1

dtx_srti_cz:RoadsideAssistanceShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/RoadsideAssistanceShape

Applies to: dtx_srti:RoadsideAssistance
Closed shape
Conforms to: dtx_srti_cz:CommonSitRecShape

Click diagram to navigate to corresponding section | View as PNG

Property name	URI	Expected value	Card.
Properties from dtx_srti_cz:RoadsideAssistanceShape
	`dtx_srti:hasRoadsideAssistenceTypeEnum`	dtx_srti:other, dtx_srti:vehicleRecovery, dtx_srti:helicopterRescue, dtx_srti:foodDelivery, dtx_srti:firstAid, dtx_srti:emergencyServices, dtx_srti:busPassengerAssistance, dtx_srti:airAmbulance, dtx_srti:vehicleRepair	1..1
	`rdf:type`		1..1
Properties from dtx_srti_cz:CommonSitRecShape
	`dcterms:isVersionOf`		1..1
	`dcterms:title`		0..1
	`dtx_srti:hasLocationReference`	`dtx_srti_cz:SingleRoadLinearLocationShape`	1..1
	`dtx_srti:hasProbabilityOfOccurrence`	dtx_srti:riskOf, dtx_srti:probable, dtx_srti:certain	1..1
	`dtx_srti:hasValidity`	`dtx_srti_cz:ValidityShape`	1..1
	`dtx_srti:impact`	`dtx_srti_cz:ImpactShape`	0..1
	`dtx_srti:situationRecordCreationTime`	`xsd:dateTime`	1..1
	`dtx_srti:situationRecordVersionTime`	`xsd:dateTime`	1..1
	`geosparql:hasGeometry`	`dtx_srti_cz:PointShape`	0..1
	`rdfs:label`		0..1

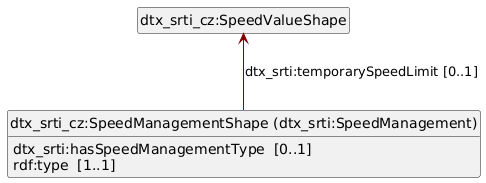

dtx_srti_cz:SpeedManagementShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/SpeedManagementShape

Applies to: dtx_srti:SpeedManagement
Closed shape
Conforms to: dtx_srti_cz:CommonSitRecShape

Click diagram to navigate to corresponding section | View as PNG

Property name	URI	Expected value	Card.
Properties from dtx_srti_cz:SpeedManagementShape
	`dtx_srti:hasSpeedManagementType`	dtx_srti:other, dtx_srti:reduceYourSpeed, dtx_srti:policeSpeedChecksInOperation, dtx_srti:observeSpeedLimits	0..1
	`dtx_srti:temporarySpeedLimit`	`dtx_srti_cz:SpeedValueShape`	0..1
	`rdf:type`		1..1
Properties from dtx_srti_cz:CommonSitRecShape
	`dcterms:isVersionOf`		1..1
	`dcterms:title`		0..1
	`dtx_srti:hasLocationReference`	`dtx_srti_cz:SingleRoadLinearLocationShape`	1..1
	`dtx_srti:hasProbabilityOfOccurrence`	dtx_srti:riskOf, dtx_srti:probable, dtx_srti:certain	1..1
	`dtx_srti:hasValidity`	`dtx_srti_cz:ValidityShape`	1..1
	`dtx_srti:impact`	`dtx_srti_cz:ImpactShape`	0..1
	`dtx_srti:situationRecordCreationTime`	`xsd:dateTime`	1..1
	`dtx_srti:situationRecordVersionTime`	`xsd:dateTime`	1..1
	`geosparql:hasGeometry`	`dtx_srti_cz:PointShape`	0..1
	`rdfs:label`		0..1

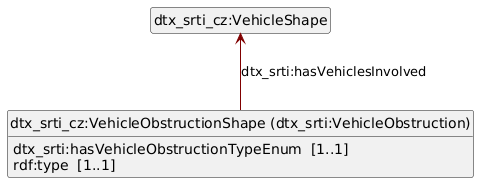

dtx_srti_cz:VehicleObstructionShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/VehicleObstructionShape

Applies to: dtx_srti:VehicleObstruction
Closed shape
Conforms to: dtx_srti_cz:CommonSitRecShape

Click diagram to navigate to corresponding section | View as PNG

Property name	URI	Expected value	Card.
Properties from dtx_srti_cz:VehicleObstructionShape
	`dtx_srti:hasVehicleObstructionTypeEnum`	dtx_srti:damagedVehicle, dtx_srti:brokenDownVehicle, dtx_srti:militaryConvoy, dtx_srti:abnormalLoad, dtx_srti:slowMoving, dtx_srti:vehicleOnWrongCarriageway, dtx_srti:slowVehicle, dtx_srti:longLoad, dtx_srti:convoy, dtx_srti:vehicleWithOverwideLoad, dtx_srti:vehicleStuck, dtx_srti:brokenDownHeavyLorry, dtx_srti:vehicleOnFire	1..1
	`dtx_srti:hasVehiclesInvolved`	`dtx_srti_cz:VehicleShape`	0..*
	`rdf:type`		1..1
Properties from dtx_srti_cz:CommonObstructionShape
	`dtx_srti:mobilityOfObstruction`	`dtx_srti_cz:MobilityShape`	0..1
	`dtx_srti:numberOfObstructions`	`xsd:nonNegativeInteger`	0..1
Properties from dtx_srti_cz:CommonSitRecShape
	`dcterms:isVersionOf`		1..1
	`dcterms:title`		0..1
	`dtx_srti:hasLocationReference`	`dtx_srti_cz:SingleRoadLinearLocationShape`	1..1
	`dtx_srti:hasProbabilityOfOccurrence`	dtx_srti:riskOf, dtx_srti:probable, dtx_srti:certain	1..1
	`dtx_srti:hasValidity`	`dtx_srti_cz:ValidityShape`	1..1
	`dtx_srti:impact`	`dtx_srti_cz:ImpactShape`	0..1
	`dtx_srti:situationRecordCreationTime`	`xsd:dateTime`	1..1
	`dtx_srti:situationRecordVersionTime`	`xsd:dateTime`	1..1
	`geosparql:hasGeometry`	`dtx_srti_cz:PointShape`	0..1
	`rdfs:label`		0..1

dtx_srti_cz:WeatherRelatedRoadConditionsShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/WeatherRelatedRoadConditionsShape

Applies to: dtx_srti:WeatherRelatedRoadConditions
Closed shape
Conforms to: dtx_srti_cz:CommonSitRecShape

Click diagram to navigate to corresponding section | View as PNG

Property name	URI	Expected value	Card.
Properties from dtx_srti_cz:WeatherRelatedRoadConditionsShape
	`dtx_srti:hasWeatherRelatedRoadConditionTypeEnum`	dtx_srti:blackIce, dtx_srti:surfaceWater, dtx_srti:ice, dtx_srti:icyPatches, dtx_srti:snowDrifts	1..*
	`rdf:type`		1..1
Properties from dtx_srti_cz:CommonConditionsShape
	`dtx_srti:hasDrivingConditionTypeEnum`	dtx_srti:winterConditions, dtx_srti:passableWithCare, dtx_srti:unknownDrivingCondition, dtx_srti:veryHazardous, dtx_srti:hazardous, dtx_srti:impossible, dtx_srti:normal, dtx_srti:other	0..1
Properties from dtx_srti_cz:CommonSitRecShape
	`dcterms:isVersionOf`		1..1
	`dcterms:title`		0..1
	`dtx_srti:hasLocationReference`	`dtx_srti_cz:SingleRoadLinearLocationShape`	1..1
	`dtx_srti:hasProbabilityOfOccurrence`	dtx_srti:riskOf, dtx_srti:probable, dtx_srti:certain	1..1
	`dtx_srti:hasValidity`	`dtx_srti_cz:ValidityShape`	1..1
	`dtx_srti:impact`	`dtx_srti_cz:ImpactShape`	0..1
	`dtx_srti:situationRecordCreationTime`	`xsd:dateTime`	1..1
	`dtx_srti:situationRecordVersionTime`	`xsd:dateTime`	1..1
	`geosparql:hasGeometry`	`dtx_srti_cz:PointShape`	0..1
	`rdfs:label`		0..1

dtx_srti_cz:WinterDrivingManagementShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/WinterDrivingManagementShape

Applies to: dtx_srti:WinterDrivingManagement
Closed shape
Conforms to: dtx_srti_cz:CommonSitRecShape

Click diagram to navigate to corresponding section | View as PNG

Property name	URI	Expected value	Card.
Properties from dtx_srti_cz:WinterDrivingManagementShape
	`dtx_srti:hasWinterEquipmentManagementType`	dtx_srti:other, dtx_srti:winterEquipmentOnBoardRequired, dtx_srti:useSnowTyres, dtx_srti:useSnowChainsOrTyres, dtx_srti:useSnowChains, dtx_srti:doNotUseStudTyres	1..1
	`rdf:type`		1..1
Properties from dtx_srti_cz:CommonConditionsShape
	`dtx_srti:hasDrivingConditionTypeEnum`	dtx_srti:winterConditions, dtx_srti:passableWithCare, dtx_srti:unknownDrivingCondition, dtx_srti:veryHazardous, dtx_srti:hazardous, dtx_srti:impossible, dtx_srti:normal, dtx_srti:other	0..1
Properties from dtx_srti_cz:CommonSitRecShape
	`dcterms:isVersionOf`		1..1
	`dcterms:title`		0..1
	`dtx_srti:hasLocationReference`	`dtx_srti_cz:SingleRoadLinearLocationShape`	1..1
	`dtx_srti:hasProbabilityOfOccurrence`	dtx_srti:riskOf, dtx_srti:probable, dtx_srti:certain	1..1
	`dtx_srti:hasValidity`	`dtx_srti_cz:ValidityShape`	1..1
	`dtx_srti:impact`	`dtx_srti_cz:ImpactShape`	0..1
	`dtx_srti:situationRecordCreationTime`	`xsd:dateTime`	1..1
	`dtx_srti:situationRecordVersionTime`	`xsd:dateTime`	1..1
	`geosparql:hasGeometry`	`dtx_srti_cz:PointShape`	0..1
	`rdfs:label`		0..1

Supportive Entities

dtx_srti_cz:AdministrativeAreaShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/AdministrativeAreaShape

Closed shape

Click diagram to navigate to corresponding section | View as PNG

Property name	URI	Expected value	Card.	Description
	`rdf:type`		0..*

dtx_srti_cz:AlertCDirectionShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/AlertCDirectionShape

Closed shape

Click diagram to navigate to corresponding section | View as PNG

Property name	URI	Expected value	Card.	Description
	`dtx_srti:hasAlertCDirectionCoded`	dtx_srti:positiveDirection, dtx_srti:negativeDirection, dtx_srti:both	1..1
	`rdf:type`		0..*

dtx_srti_cz:AlertCLocationShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/AlertCLocationShape

Closed shape

Click diagram to navigate to corresponding section | View as PNG

Property name	URI	Expected value	Card.	Description
	`dtx_srti:specificLocation`	`dtx_srti:AlertCLocationCode`	1..1
	`rdf:type`		0..*

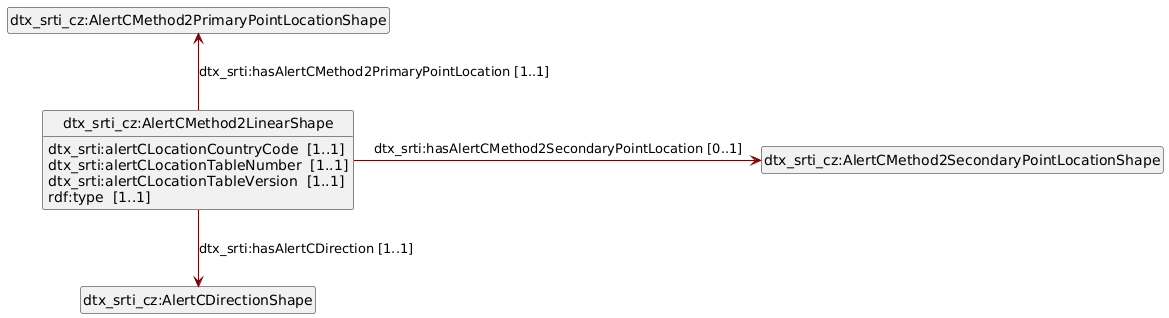

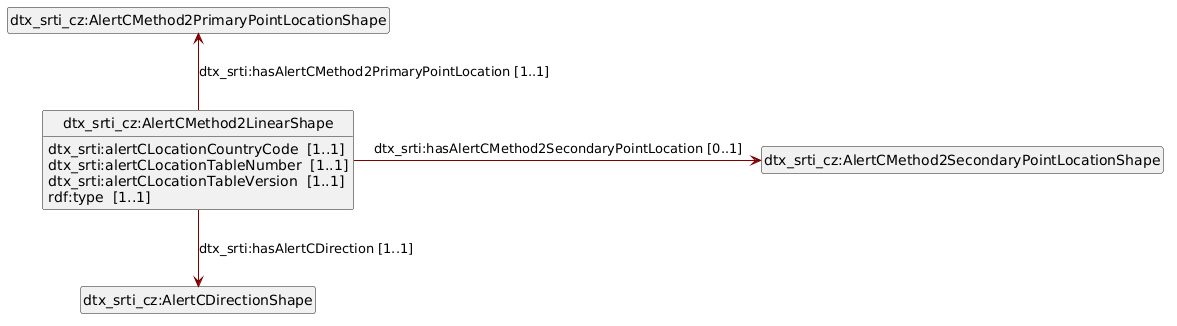

dtx_srti_cz:AlertCMethod2LinearShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/AlertCMethod2LinearShape

Closed shape

Click diagram to navigate to corresponding section | View as PNG

URI	Expected value	Card.
`dtx_srti:alertCLocationCountryCode`		1..1
`dtx_srti:alertCLocationTableNumber`		1..1
`dtx_srti:alertCLocationTableVersion`		1..1
`dtx_srti:hasAlertCDirection`	`dtx_srti_cz:AlertCDirectionShape`	1..1
`dtx_srti:hasAlertCMethod2PrimaryPointLocation`	`dtx_srti_cz:AlertCMethod2PrimaryPointLocationShape`	1..1
`dtx_srti:hasAlertCMethod2SecondaryPointLocation`	`dtx_srti_cz:AlertCMethod2SecondaryPointLocationShape`	0..1
`rdf:type`		1..1

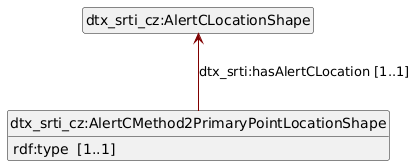

dtx_srti_cz:AlertCMethod2PrimaryPointLocationShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/AlertCMethod2PrimaryPointLocationShape

Closed shape

Click diagram to navigate to corresponding section | View as PNG

Property name	URI	Expected value	Card.	Description
	`dtx_srti:hasAlertCLocation`	`dtx_srti_cz:AlertCLocationShape`	1..1
	`rdf:type`		1..1

dtx_srti_cz:CarriagewayShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/CarriagewayShape

Click diagram to navigate to corresponding section | View as PNG

Property name	URI	Expected value	Card.	Description
	`dtx_srti:hasCarriagewayEnum`	dtx_srti:connectingCarriageway, dtx_srti:entrySlipRoad, dtx_srti:exitSlipRoad, dtx_srti:flyover, dtx_srti:leftHandFeederRoad, dtx_srti:leftHandParallelCarriageway, dtx_srti:mainCarriageway, dtx_srti:oppositeCarriageway, dtx_srti:parallelCarriageway, dtx_srti:rightHandFeederRoad, dtx_srti:rightHandParallelCarriageway, dtx_srti:roundabout, dtx_srti:serviceRoad, dtx_srti:slipRoads, dtx_srti:underpass	0..1
	`rdf:type`		1..1

dtx_srti_cz:CommonConditionsShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/CommonConditionsShape

Click diagram to navigate to corresponding section | View as PNG

Property name	URI	Expected value	Card.	Description
	`dtx_srti:hasDrivingConditionTypeEnum`	dtx_srti:winterConditions, dtx_srti:passableWithCare, dtx_srti:unknownDrivingCondition, dtx_srti:veryHazardous, dtx_srti:hazardous, dtx_srti:impossible, dtx_srti:normal, dtx_srti:other	0..1

dtx_srti_cz:CommonObstructionShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/CommonObstructionShape

Click diagram to navigate to corresponding section | View as PNG

Property name	URI	Expected value	Card.	Description
	`dtx_srti:mobilityOfObstruction`	`dtx_srti_cz:MobilityShape`	0..1
	`dtx_srti:numberOfObstructions`	`xsd:nonNegativeInteger`	0..1

dtx_srti_cz:CommonRoadworksShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/CommonRoadworksShape

Click diagram to navigate to corresponding section | View as PNG

URI	Expected value	Card.
`dtx_srti:hasRoadworksDuration`	dtx_srti:longTerm, dtx_srti:mediumTerm, dtx_srti:shortTerm	0..1
`dtx_srti:hasRoadworksScaleEnum`	dtx_srti:major, dtx_srti:mediumRoadworksScale, dtx_srti:minor	0..1
`dtx_srti:underTraffic`	`xsd:boolean`	0..1
`dtx_srti:urgenRoadworks`	`xsd:boolean`	0..1

dtx_srti_cz:CommonSitRecShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/CommonSitRecShape

Click diagram to navigate to corresponding section | View as PNG

URI	Expected value	Card.
`dcterms:isVersionOf`		1..1
`dcterms:title`		0..1
`dtx_srti:hasLocationReference`	`dtx_srti_cz:SingleRoadLinearLocationShape`	1..1
`dtx_srti:hasProbabilityOfOccurrence`	dtx_srti:riskOf, dtx_srti:probable, dtx_srti:certain	1..1
`dtx_srti:hasValidity`	`dtx_srti_cz:ValidityShape`	1..1
`dtx_srti:impact`	`dtx_srti_cz:ImpactShape`	0..1
`dtx_srti:situationRecordCreationTime`	`xsd:dateTime`	1..1
`dtx_srti:situationRecordVersionTime`	`xsd:dateTime`	1..1
`geosparql:hasGeometry`	`dtx_srti_cz:PointShape`	0..1
`rdfs:label`		0..1

dtx_srti_cz:HasBeginningEndShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/HasBeginningEndShape

Closed shape

Click diagram to navigate to corresponding section | View as PNG

Property name	URI	Expected value	Card.	Description
	`time:inXSDDateTime`	`xsd:dateTime`	1..1

dtx_srti_cz:ImpactShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/ImpactShape

Closed shape

Click diagram to navigate to corresponding section | View as PNG

URI	Expected value	Card.
`dtx_srti:capacityRemaining`	`dtx_srti:float%20percentage`	0..1
`dtx_srti:hasTrafficConstrictionTypeEnum`	dtx_srti:carriagewayBlocked, dtx_srti:carriagewayPartiallyObstructed, dtx_srti:lanesBlocked, dtx_srti:lanesPartiallyObstructed, dtx_srti:roadBlocked, dtx_srti:roadPartiallyObstructed	0..1
`dtx_srti:numberOfLanesRestricted`	`xsd:nonNegativeInteger`	0..1
`dtx_srti:numberOfOperationalLanes`	`xsd:nonNegativeInteger`	0..1
`dtx_srti:numberOfOperationalLanes`	`xsd:nonNegativeInteger`	0..1
`dtx_srti:originalNumberOfLanes`	`xsd:int`	0..1
`rdf:type`		0..*

dtx_srti_cz:LaneShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/LaneShape

Click diagram to navigate to corresponding section | View as PNG

Property name	URI	Expected value	Card.	Description
	`dtx_srti:hasLaneEnum`	dtx_srti:allLanesCompleteCarriageway, dtx_srti:busLane, dtx_srti:busStop, dtx_srti:carPoolLane, dtx_srti:centralReservation, dtx_srti:crawlerLane, dtx_srti:emergencyLane, dtx_srti:escapeLane, dtx_srti:expressLane, dtx_srti:hardShoulder, dtx_srti:heavyVehicleLane, dtx_srti:layBy, dtx_srti:leftHandTurningLane, dtx_srti:leftLane, dtx_srti:localTrafficLane, dtx_srti:middleLane, dtx_srti:PLACEHOLDER, dtx_srti:overtakingLane, dtx_srti:rightHandTurningLane, dtx_srti:rightLane, dtx_srti:rushHourLane, dtx_srti:setDownArea, dtx_srti:slowVehicleLane, dtx_srti:throughTrafficLane, dtx_srti:tidalFlowLane, dtx_srti:turningLane, dtx_srti:verge	0..1
	`rdf:type`		1..1

dtx_srti_cz:LinearElementShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/LinearElementShape

Click diagram to navigate to corresponding section | View as PNG

Property name	URI	Expected value	Card.	Description
	`dtx_srti:type`		0..1
	`rdf:type`		1..1

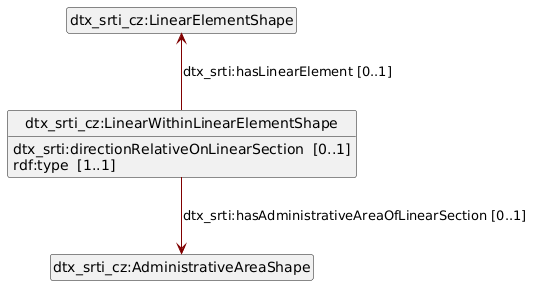

dtx_srti_cz:LinearWithinLinearElementShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/LinearWithinLinearElementShape

Click diagram to navigate to corresponding section | View as PNG

URI	Expected value	Card.
`dtx_srti:directionRelativeOnLinearSection`	dtx_srti:both, dtx_srti:opposite, dtx_srti:aligned, dtx_srti:unknown	0..1
`dtx_srti:hasAdministrativeAreaOfLinearSection`	`dtx_srti_cz:AdministrativeAreaShape`	0..1
`dtx_srti:hasLinearElement`	`dtx_srti_cz:LinearElementShape`	0..1
`rdf:type`		1..1

dtx_srti_cz:MobilityShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/MobilityShape

Closed shape

Click diagram to navigate to corresponding section | View as PNG

Property name	URI	Expected value	Card.	Description
	`dtx_srti:mobilityType`	dtx_srti:unknownMobility, dtx_srti:stationary, dtx_srti:mobile	1..1
	`rdf:type`		1..1

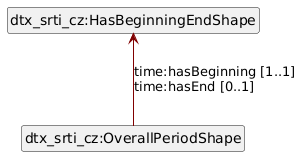

dtx_srti_cz:OverallPeriodShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/OverallPeriodShape

Closed shape

Click diagram to navigate to corresponding section | View as PNG

Property name	URI	Expected value	Card.	Description
	`time:hasBeginning`	`dtx_srti_cz:HasBeginningEndShape`	1..1
	`time:hasEnd`	`dtx_srti_cz:HasBeginningEndShape`	0..1

dtx_srti_cz:PointShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/PointShape

Click diagram to navigate to corresponding section | View as PNG

Property name	URI	Expected value	Card.	Description
	`geosparql:asWKT`	`virtrdf:Geometry`	1..1
	`rdf:type`		1..1

dtx_srti_cz:SingleRoadLinearLocationShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/SingleRoadLinearLocationShape

Click diagram to navigate to corresponding section | View as PNG

URI	Expected value	Card.
`dtx_srti:hasAlertCLinear`	`dtx_srti_cz:AlertCMethod2LinearShape`	0..1
`dtx_srti:hasLinearWithinLinearElement`	`dtx_srti_cz:LinearWithinLinearElementShape`	0..1
`dtx_srti:hasSupplementaryPositionalDescription`	`dtx_srti_cz:SupplementaryPositionalDescriptionShape`	0..1

dtx_srti_cz:SpeedValueShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/SpeedValueShape

Closed shape

Click diagram to navigate to corresponding section | View as PNG

Property name	URI	Expected value	Card.	Description
	`dtx_srti:numericValue`	`xsd:float`	1..1
	`rdf:type`		1..1

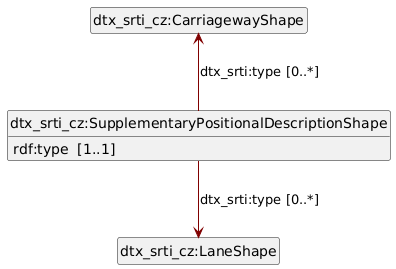

dtx_srti_cz:SupplementaryPositionalDescriptionShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/SupplementaryPositionalDescriptionShape

Click diagram to navigate to corresponding section | View as PNG

URI	Expected value	Card.
`dtx_srti:type`	`dtx_srti_cz:LaneShape`	0..*
`dtx_srti:type`	`dtx_srti_cz:CarriagewayShape`	0..*
`rdf:type`		1..1

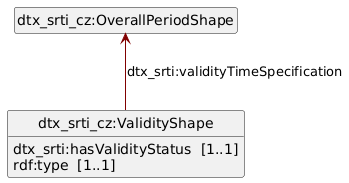

dtx_srti_cz:ValidityShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/ValidityShape

Closed shape

Click diagram to navigate to corresponding section | View as PNG

URI	Expected value	Card.
`dtx_srti:hasValidityStatus`	dtx_srti:suspendedValidity, dtx_srti:activeValidity, dtx_srti:definedByValidityTimeSpec	1..1
`dtx_srti:validityTimeSpecification`	`dtx_srti_cz:OverallPeriodShape`	0..*
`rdf:type`		1..1

dtx_srti_cz:VehicleCharacteristicsShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/VehicleCharacteristicsShape

Closed shape

Click diagram to navigate to corresponding section | View as PNG

Property name	URI	Expected value	Card.	Description
	`dtx_srti:hasVehicleTypeEnum`	dtx_srti:moped, dtx_srti:car, dtx_srti:fourWheelDrive, dtx_srti:bicycle, dtx_srti:agriculturalVehicle, dtx_srti:motorscooter, dtx_srti:vehicleWithTrailer, dtx_srti:motorcycle, dtx_srti:other, dtx_srti:vehicleWithCatalyticConverter, dtx_srti:constructionOrMaintenanceVehicle, dtx_srti:articulatedVehicle, dtx_srti:twoWheeledVehicle, dtx_srti:vehicle_with_caravan, dtx_srti:vehicleWithoutCatalyticConverter, dtx_srti:withOddNumberedRegistrationPlates, dtx_srti:anyVehicle, dtx_srti:tanker, dtx_srti:highSidedVehicle, dtx_srti:lorry, dtx_srti:bus, dtx_srti:carOrLightVehicle, dtx_srti:van, dtx_srti:caravan, dtx_srti:threeWheeledVehicle, dtx_srti:withEvenNumberedRegistrationPlates, dtx_srti:tram, dtx_srti:motorcycleWithSideCar, dtx_srti:carWithTrailer, dtx_srti:trailer, dtx_srti:carWithCaravan	0..*
	`rdf:type`		0..*

dtx_srti_cz:VehicleShape

https://lod.tamtamresearch.com/resource/dtx_srti/SituationRecord/VehicleShape

Closed shape

Click diagram to navigate to corresponding section | View as PNG

URI	Expected value	Card.
`dtx_srti:hasVehicleCharacteristics`	`dtx_srti_cz:VehicleCharacteristicsShape`	0..1
`dtx_srti:hasVehicleStatus`	dtx_srti:damagedAndImmobilized, dtx_srti:brokenDown, dtx_srti:onFire, dtx_srti:abandoned, dtx_srti:damaged, dtx_srti:burntOut	0..1
`rdf:type`		1..1

https://lod.tamtamresearch.com/shacl/dtx_srti/SituationRecord

https://lod.tamtamresearch.com/shacl/dtx_srti/SituationRecord

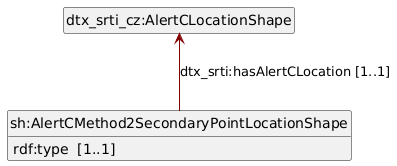

sh:AlertCMethod2SecondaryPointLocationShape

http://www.w3.org/ns/shacl#AlertCMethod2SecondaryPointLocationShape

Closed shape

Click diagram to navigate to corresponding section | View as PNG

Property name	URI	Expected value	Card.	Description
	`dtx_srti:hasAlertCLocation`	`dtx_srti_cz:AlertCLocationShape`	1..1
	`rdf:type`		1..1

SHACL for Safety Related Traffic Information (SRTI) in Czechia

Abstract

Table of Contents

Namespaces

Main Entities

dtx_srti_cz:AbnormalTrafficShape

dtx_srti_cz:AccidentShape

dtx_srti_cz:AnimalPresenceObstructionShape

dtx_srti_cz:ConstructionWorksShape

dtx_srti_cz:DisturbanceActivityShape

dtx_srti_cz:EnvironmentalObstructionShape

dtx_srti_cz:GeneralInstructionOrMessageToRoadUsersShape

dtx_srti_cz:GeneralNetworkManagementShape

dtx_srti_cz:GeneralObstructionShape

dtx_srti_cz:MaintenanceWorksShape

dtx_srti_cz:NonWeatherRelatedRoadConditionsShape

dtx_srti_cz:PoorEnvironmentConditionsShape

dtx_srti_cz:PublicEventShape

dtx_srti_cz:ReroutingManagementShape

dtx_srti_cz:RoadOrCarriagewayOrLaneManagementShape

dtx_srti_cz:RoadsideAssistanceShape

dtx_srti_cz:SpeedManagementShape

dtx_srti_cz:VehicleObstructionShape

dtx_srti_cz:WeatherRelatedRoadConditionsShape

dtx_srti_cz:WinterDrivingManagementShape

Supportive Entities

dtx_srti_cz:AdministrativeAreaShape

dtx_srti_cz:AlertCDirectionShape

dtx_srti_cz:AlertCLocationShape

dtx_srti_cz:AlertCMethod2LinearShape

dtx_srti_cz:AlertCMethod2PrimaryPointLocationShape

dtx_srti_cz:CarriagewayShape

dtx_srti_cz:CommonConditionsShape

dtx_srti_cz:CommonObstructionShape

dtx_srti_cz:CommonRoadworksShape

dtx_srti_cz:CommonSitRecShape

dtx_srti_cz:HasBeginningEndShape

dtx_srti_cz:ImpactShape

dtx_srti_cz:LaneShape

dtx_srti_cz:LinearElementShape

dtx_srti_cz:LinearWithinLinearElementShape

dtx_srti_cz:MobilityShape

dtx_srti_cz:OverallPeriodShape

dtx_srti_cz:PointShape

dtx_srti_cz:SingleRoadLinearLocationShape

dtx_srti_cz:SpeedValueShape

dtx_srti_cz:SupplementaryPositionalDescriptionShape

dtx_srti_cz:ValidityShape

dtx_srti_cz:VehicleCharacteristicsShape

dtx_srti_cz:VehicleShape

https://lod.tamtamresearch.com/shacl/dtx_srti/SituationRecord

sh:AlertCMethod2SecondaryPointLocationShape
